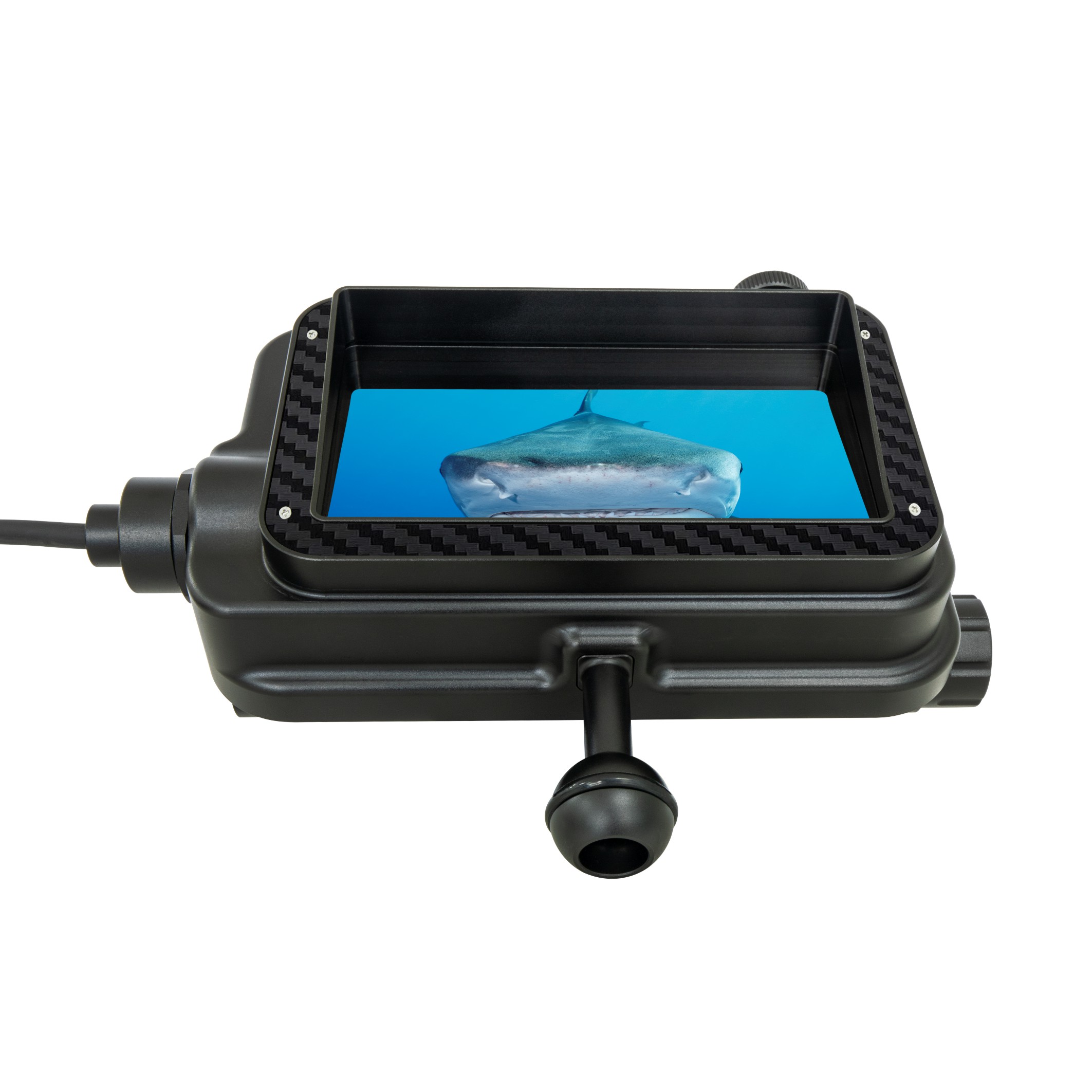

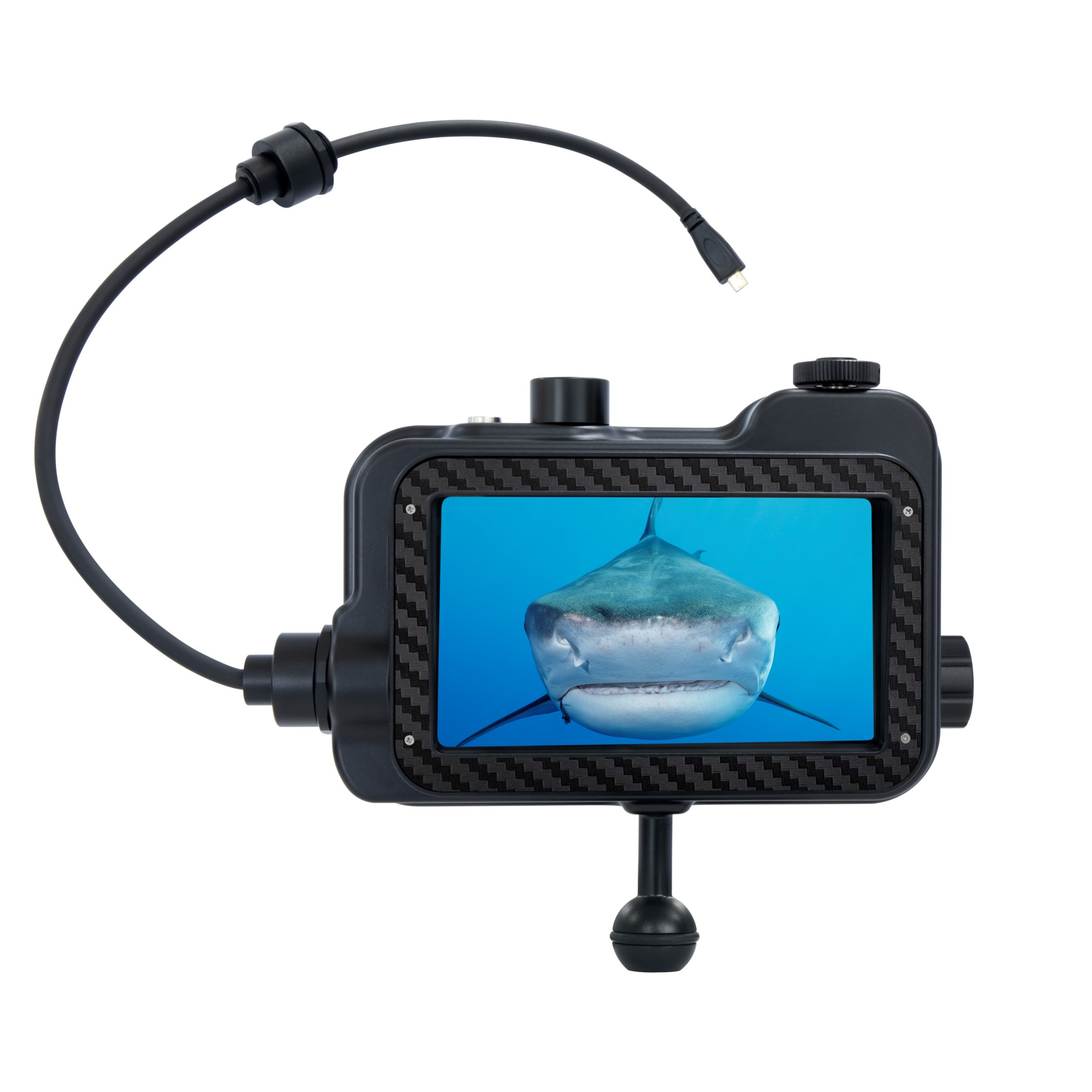

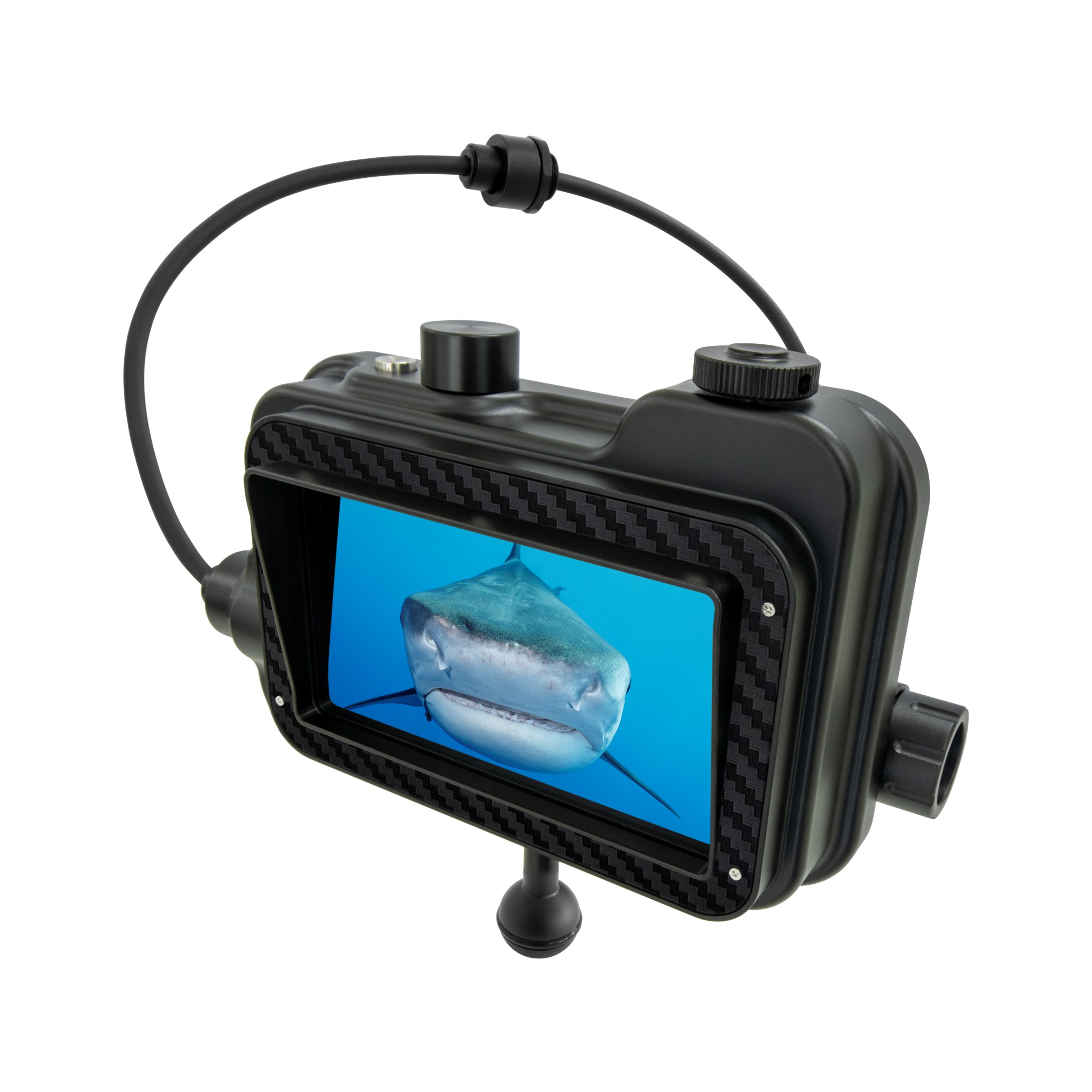

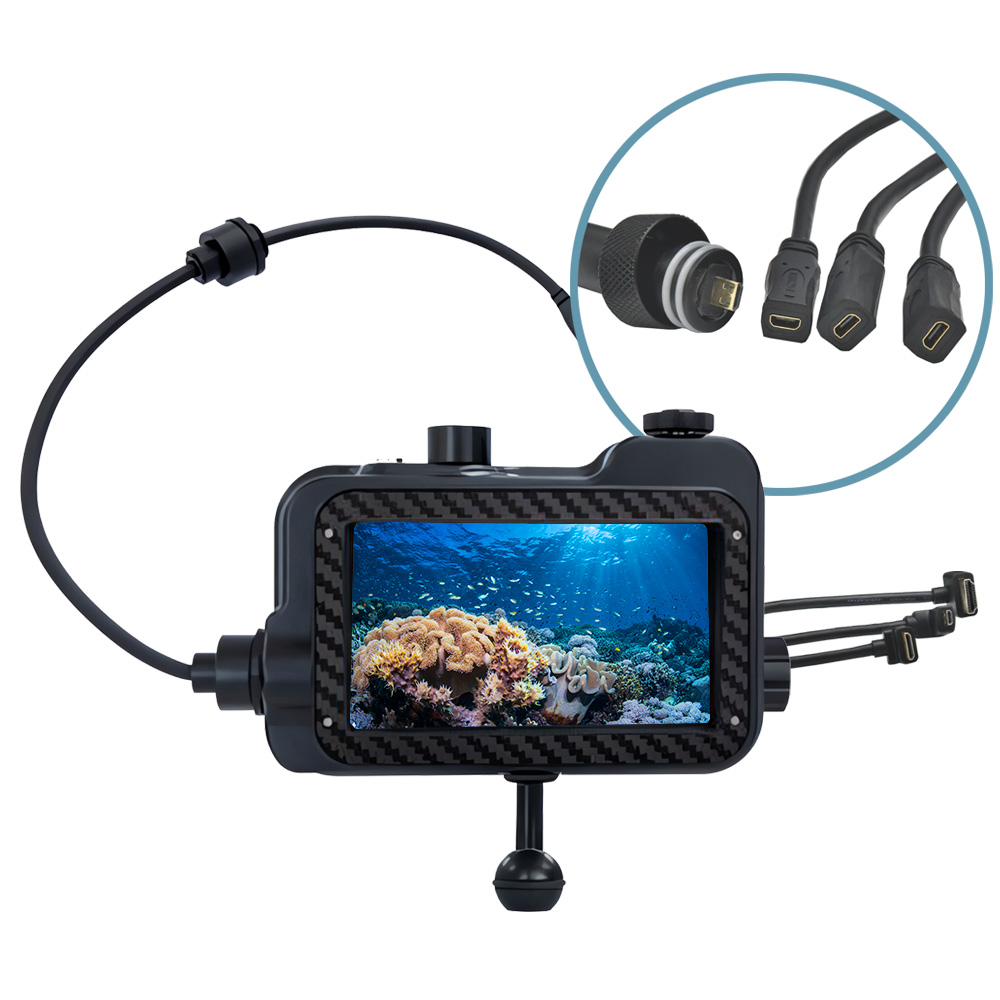

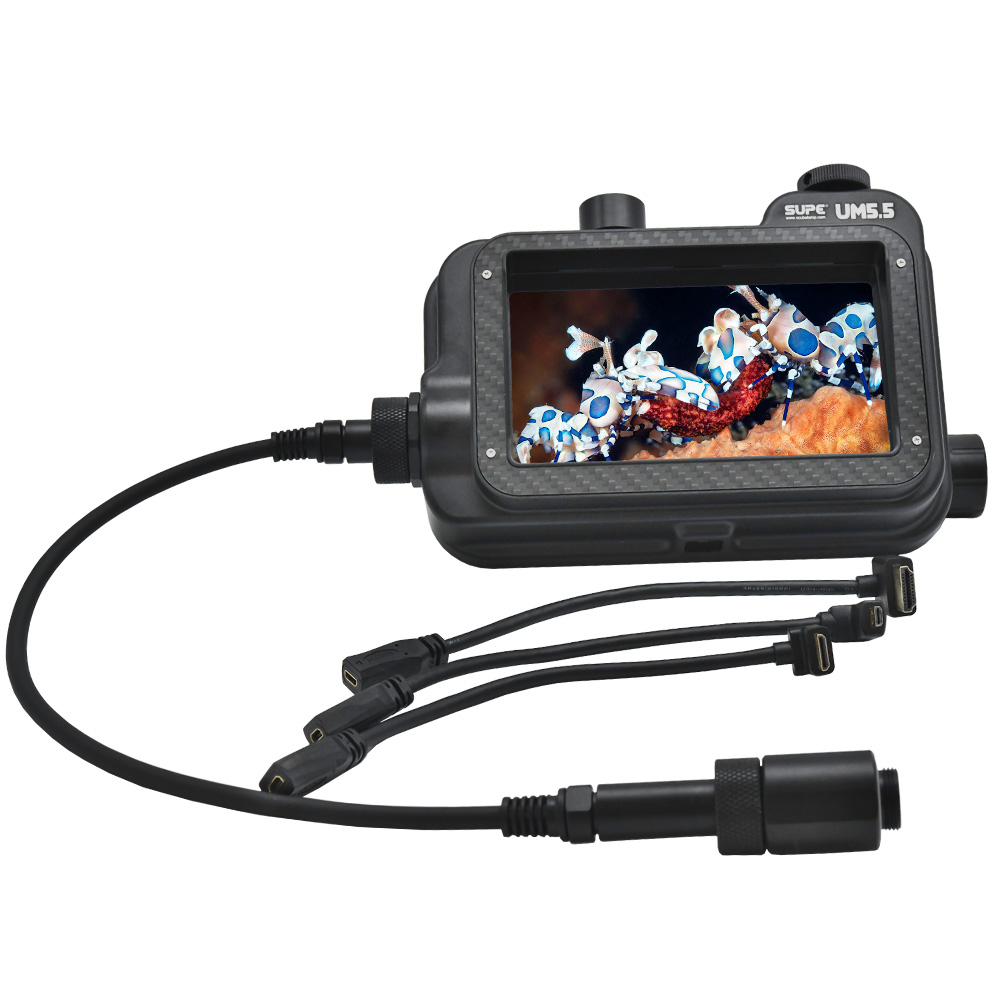

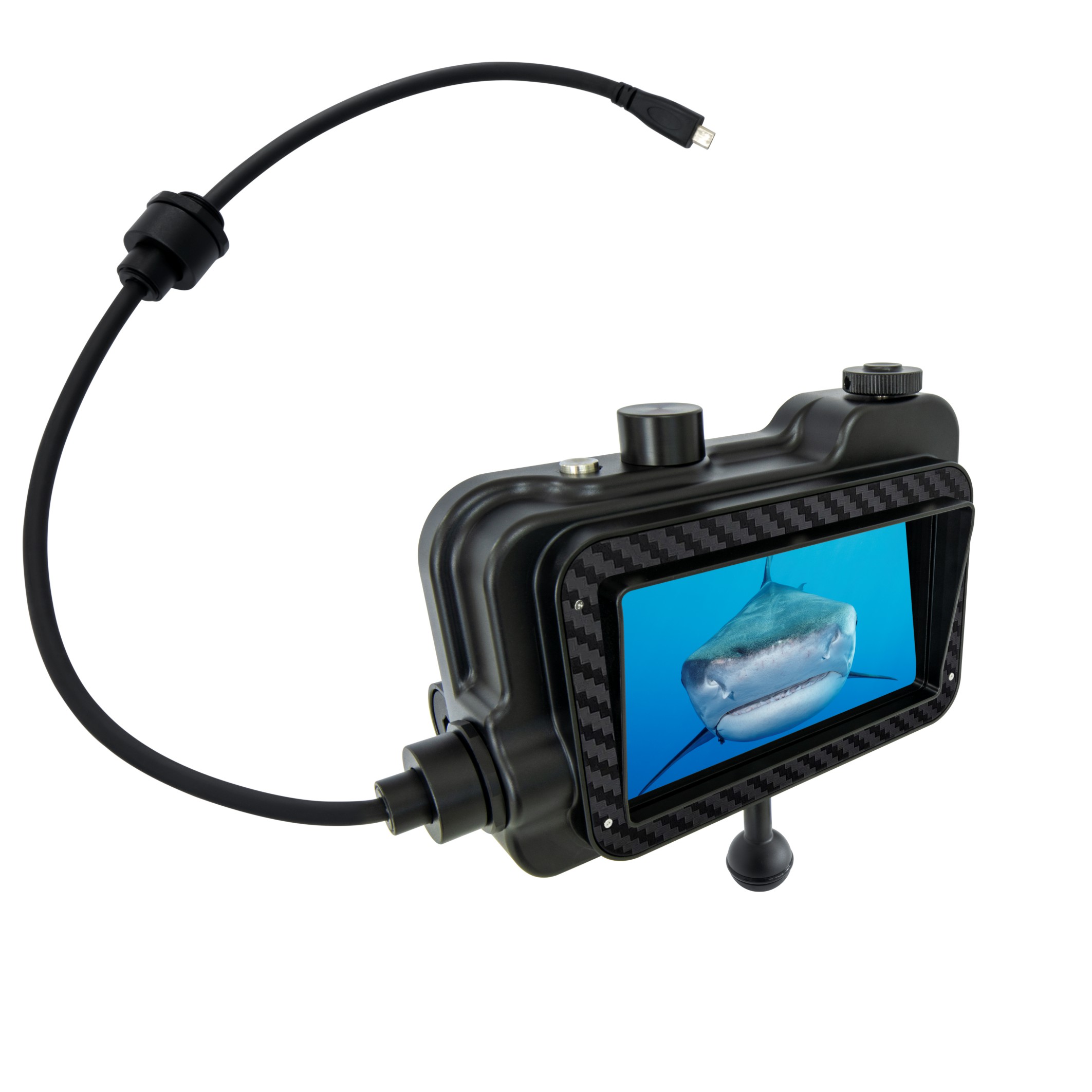

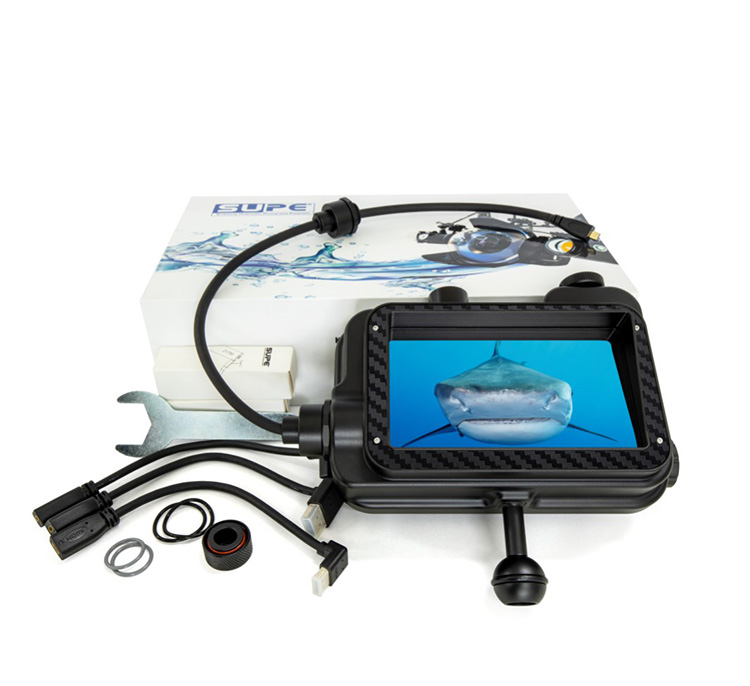

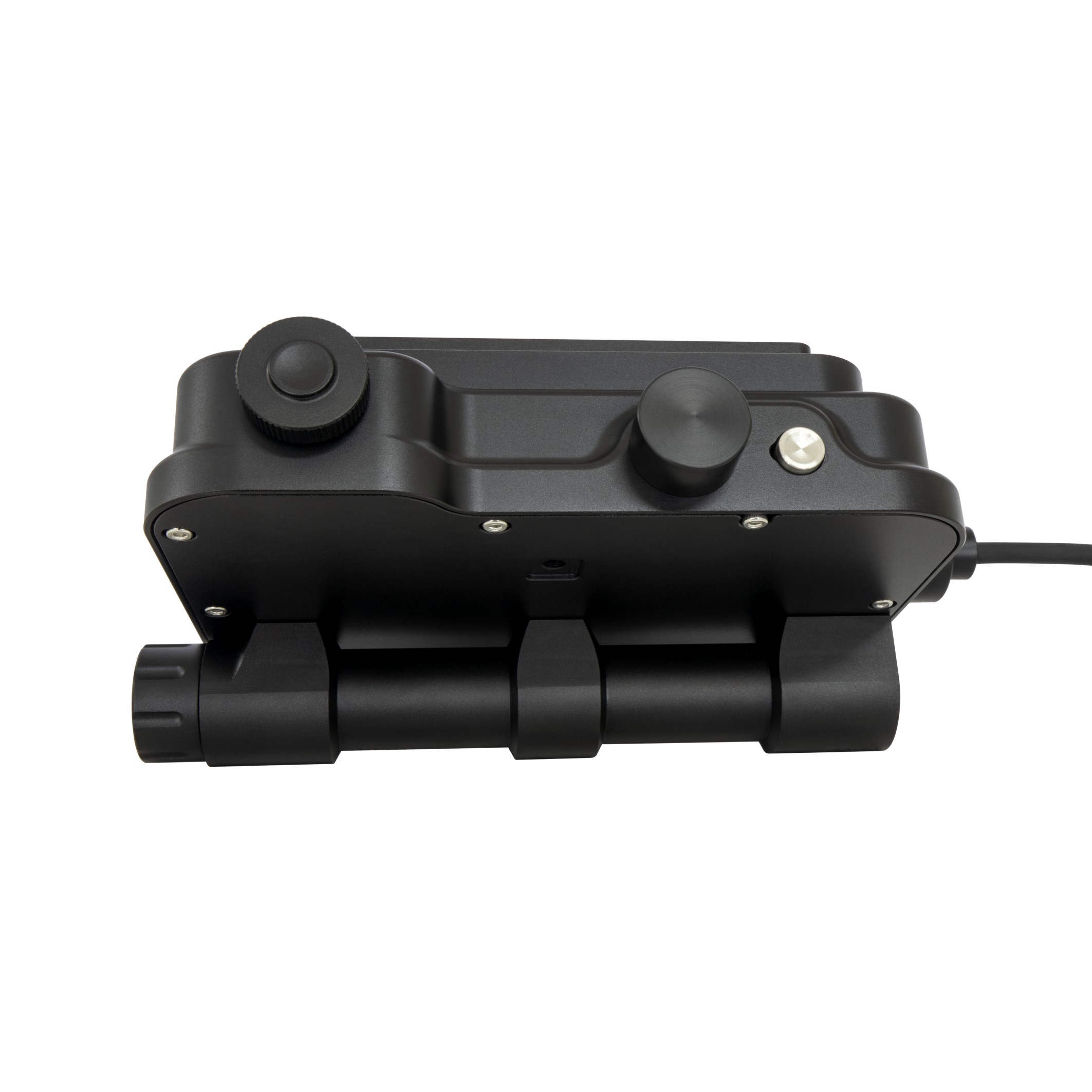

UM5.5 Monitor

Compatible with M16 in the housing. M16 to M24 adaptor is optional( Need to buy separately)
0.0 (0 Reviews)
$0.00 $1,168.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity
-
+
  • Description

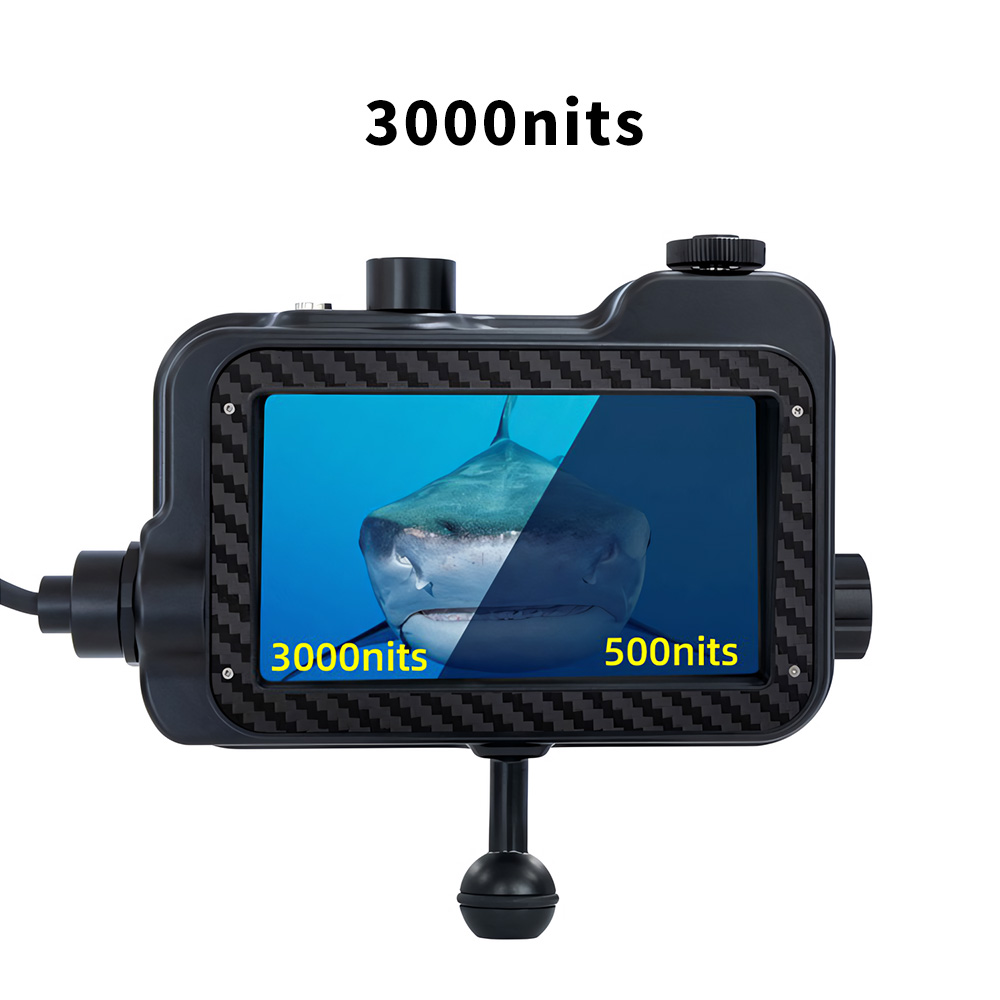

SUPE UM5.5 Monitor 3000 ultra-high brightness

Technical Parameters

 Panel Size:5.5” touch screen
 Resolution:1920 x 1080 pixels
 Dot Pitch:0.069(L)x 0.069(w)(mm)
 Aspect Ratio:16:9
 Brightness:3000cd/m2
 Contrast:1000 : 1
 Viewing Angle:80°/80(L/R) 80°/80U/D)
 Backlight:LED
 Input:HDMI
 Output:HDMI
 Power Output:DC OUT 8V, Barrel (5.5mm outer, 21mm inner: PowerDSLR or mirrorless camera)
 Input Voltage:7~24V
 Power Consumption:≦20W
 Unit Size:175Lx111Hx32.2D (mm)
 Unit Weight:1270g (on land with battery)
 Mount Points:(2) ¼ -20 thread points (right, bottom)
 Working Temperature:-20°C~70C
 Storage Temperature:-30°C~80C

Compatible with M16 in the housing.  M16 to M24 adaptor is optional( Need to buy separately)









Monitor -M16 assembly video:
